Drill & Mixer · Earth Auger & Mixers

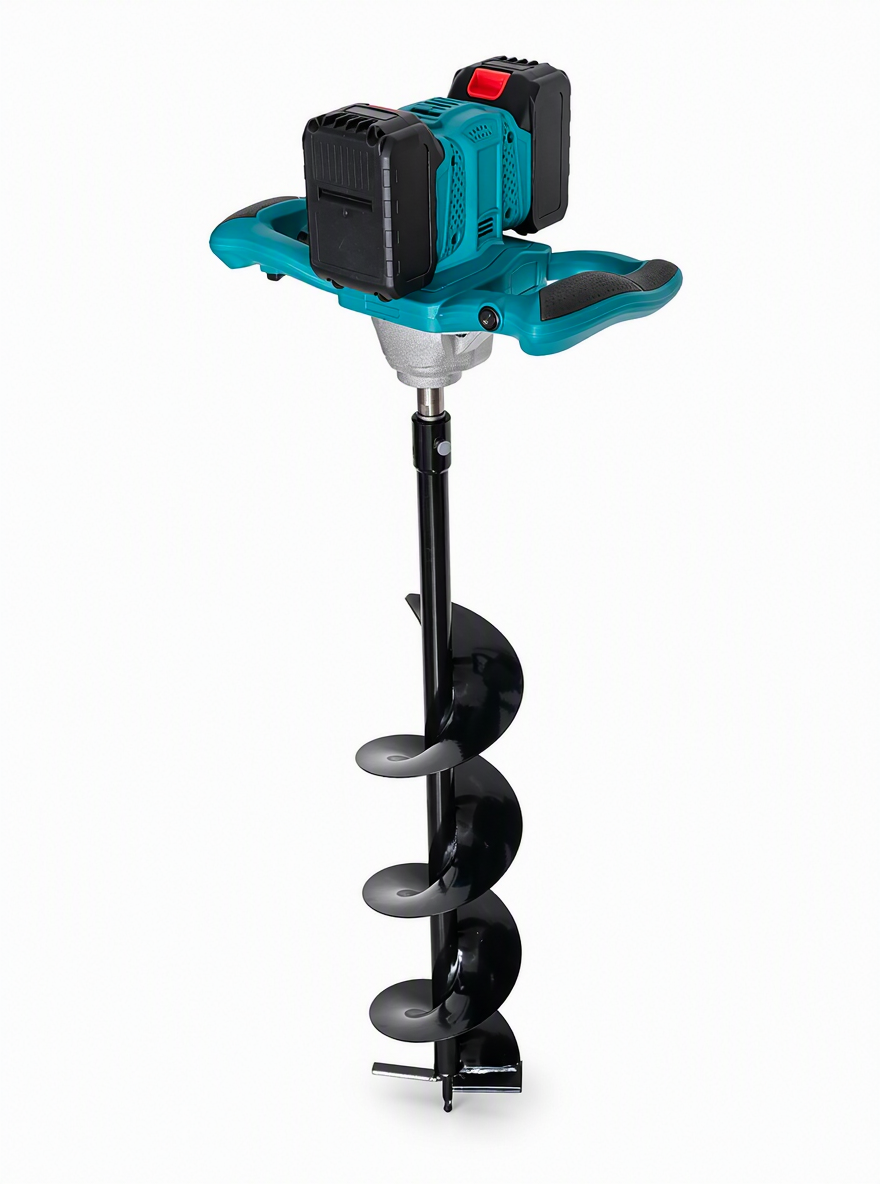

42V Brushless 4830 Multi-Function Dual-Handle Drill, 1,000W, 500–1,200rpm, 1,200Nm, 15cm Max Bit

SKU LM-01 · Factory direct · OEM available

Brushless 4830, 42V ,Up to 1,000W ,500–1,200rpm , 1,200Nm Max Torque, 15cm Max Bit , 6-Speed ,Forward/Reverse,Ground / Ice Drill / Mixer , 2.7kg Bare Tool.

▸Brushless 4830 motor, up to 1000W — more efficient and longer-lasting than a brushed motor of the same size for drilling and mixing.
▸Maximum torque 1200Nm, 500–1200rpm — high torque for ground and ice drilling within the rated bit size.
▸Fits bits up to 15cm diameter — for ground auger or ice auger work; swap the shaft for a mixing rod to use it as a mixer.
▸6-speed adjustment + forward/reverse — lower speeds and reverse for starting holes or clearing jams, higher speeds for faster progress.
▸Dual-handle design — both hands control the tool for better stability when drilling or mixing.
▸About 2.7kg bare tool — lighter than a full-size gas auger for shorter jobs and easier carry.

Power: 1,000W
Voltage: 42V
Key spec: 1,200Nm
Quote: 24h

--Overview-- This cordless multi-function dual-handle drill uses a brushless 4830 motor on a 42V battery. Motor power is up to 1,000W, output speed is 500–1,200rpm, and maximum torque is 1,200Nm. It accepts ground or ice drill bits up to 15cm in diameter. Swap the bit for a mixing rod and it works as a mixer. The bare tool weighs about 2.7kg. It has 6 speed levels and forward/reverse control. The dual handles give both hands a grip for better control when the bit is in the ground or the paddle is in a bucket. Use it for planting holes, ice fishing holes, and light mixing jobs within the rated size. It is not a full-size gas earth auger for deep or large-diameter holes. --Key features-- ▸Brushless 4830 motor ▸Voltage 42V ▸Motor power up to 1,000W ▸Output speed 500–1,200rpm ▸Maximum torque 1,200Nm ▸Compatible with bits up to 15cm diameter ▸Multi-function: ground drill, ice drill, or mixer ▸6-speed adjustment ▸Forward/reverse control ▸Dual-handle design ▸Bare tool weight about 2.7kg

Request factory quote WhatsApp this model

Specifications

Type	Cordless multi-function dual-handle drill
Motor	Brushless 4830
Voltage	42V
Max power	Up to 1,000W
Output speed	500–12,00rpm
Max torque	1,200Nm
Compatible bit diameter	Up to 15 cm
Functions	Ground drill / ice drill / mixer
Speed levels	6
Direction	Forward / reverse
Handles	Dual
Weight	About 2.7 kg (bare tool)

--How to use-- 1.Fit a compatible 42V battery. List capacity and whether battery and charger are included once confirmed. 2.For drilling: attach a ground or ice auger bit up to 15cm diameter. Secure the bit with the supplied pins or bolts before the battery goes on. 3.For mixing: remove the drill bit and fit a mixing rod. Confirm the rod is tight. 4.Select one of the 6 speed levels. Use lower speeds and reverse to start a hole or clear a jam; use higher speeds once the bit is tracking. 5.Hold both handles. Keep the tool upright when drilling. Do not force the bit; let torque and speed do the work. 6.Stop the tool before lifting the bit clear of the hole or the mix. 7.After use, remove the battery, clean the bit or paddle, and clear debris from the vents and chuck.

OEM note

Housing colour, carton language, voltage and plug are locked in the PO. Send destination port and monthly volume.

Quote this machine.

Tell us quantity, 110 or 220V, plug type and destination port. We reply within one working day.
